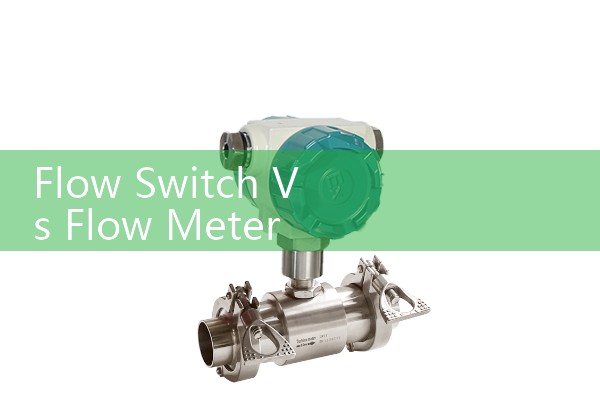

Flow Switch vs Flow Meter Engineering: Continuous Volumetric Data Streaming vs Target Setpoint Relays
Quick Answer: A flow switch closes or opens a relay when flow passes one setpoint. A flow meter streams continuous volumetric data such as 4-20 mA HART, pulse, or Modbus RTU to a control system. Use a flow switch for simple pump protection and low flow alarms. Use a flow meter for batching, totalizing, density measurement, or trade transfer.
What a Flow Switch Does on a Process Line
A flow switch is a target setpoint relay device. It monitors one thing only. Flow is above the setpoint or below the setpoint. There is no volume total, no rate trend, no analog output. On most models you get a dry contact relay, sometimes a PNP or NPN output. The relay trips when flow drops below 0.5 m/s on a cooling water line or when air flow stops in a dryer duct.
We see these in pump seal protection, filter blockage alarms, and chiller water loops. A paint manufacturer in Vietnam uses thermal dispersion flow switches on solvent lines. The switch cuts the pump before a dry run damages the impeller. Pipe size is DN15. Setpoint is 1.2 m/s. Output is a simple relay to a local alarm panel. That is the whole job.
What a Flow Meter Does Differently
A flow meter gives continuous volumetric data. It sends a signal that changes with flow rate. A magnetic flow meter on a DN50 line puts out 4-20 mA HART. At zero flow the signal is 4 mA. At 100 m3/h the signal is 20 mA. The PLC or recorder reads this and stores totalized volume. You can see live rate, daily total, and batch volume.
Silver Instruments supplies Coriolis mass flow meters, electromagnetic flow meters, ultrasonic flow meters, oval gear flow meters, and thermal mass flow meters. Each type fits a different fluid. A Coriolis meter also sends mass flow, density, and temperature over Modbus. An oval gear meter sends pulse output for diesel or lube oil. That pulse train is a continuous data stream, not a relay trip.
Continuous Data Streaming vs a Relay Trip
Here is the core difference. A flow switch only changes state at one threshold. A flow meter gives you the actual flow value all the time. This matters when you need a trend or a record for an audit. A wastewater plant in Australia needs daily effluent volume for compliance. A flow switch cannot provide that. An electromagnetic flow meter with Modbus RTU will deliver totalized m3 per day to a paperless recorder.
A flow switch can also fail to show slow drift. If flow drops from 80 m3/h to 40 m3/h but stays above the 20 m3/h setpoint, the switch will not trip. The flow meter shows the drop immediately. Operators can fix a pump issue before it becomes a shutdown.
When to Pick a Flow Switch
Pick a flow switch when the process only needs a yes or no answer. Cooling water is either flowing or not. Pump seal flush is either active or not. A flow switch costs less than a flow meter. It installs faster on small lines. A basic paddle type for DN15 to DN50 water ser
One customer in the Philippines asked us for a seawater flow switch on a desalination plant intake. The line was DN100. The setpoint was 3 m/s. The output was a dry contact to a local PLC. No totalizer was needed. The plant only wanted to shut the high pressure pump if seawater flow stopped.
When to Pick a Flow Meter
Pick a flow meter when you need rate, total, density, or a signal to a DCS. Batching applications in food and beverage need a known volume per cycle. An electromagnetic flow meter on a yogurt line delivers 4-20 mA HART and a digital totalizer. The batch stops at 500 liters. A flow switch cannot count volume.
Coriolis mass flow meters are common in oil and gas custody transfer. You need mass flow in kg/h and density in kg/m3. The meter sends that data continuously over HART or Modbus. A flow switch is not accepted for trade metering in most countries.
Using Both Devices on One Skid
Many skid builders use both devices. A flow meter provides the main control signal. A flow switch provides a redundant low flow alarm. A water treatment OEM in Indonesia builds reverse osmosis skids with a Silver Instruments electromagnetic flow meter on the permeate line and a thermal flow switch on the feed line. The meter controls recovery rate. The switch trips if feed pressure drops and flow stops. This costs a little more but protects the membranes.
How to Request a Quote from Silver Instruments
Send us your fluid name, pressure in bar, temperature in °C, pipe size in DN, and flow range. Tell us if you need a relay or an analog signal. We will recommend a flow switch or a flow meter with a price and delivery time. Silver Automation Instruments serves industrial end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
FAQ
Q1: Can a flow switch replace a flow meter for pump protection?
A flow switch can replace a flow meter if you only need a low flow trip. It cannot give total flow or rate trend.
Q2: What output signals do flow meters from Silver Instruments provide?
Common outputs are 4-20 mA HART, pulse, Modbus RTU, and RS485. Some Coriolis meters also give density and temperature.
Q3: What is the typical response time of a flow switch?
Thermal dispersion switches respond in 2 to 10 seconds. Paddle types may take 1 to 3 seconds. The setpoint and pipe size affect this.
Q4: Can I use one flow switch for two setpoints?
Most basic flow switches have one relay. Some thermal models include two independent relays. Tell us if you need high and low flow alarms on one unit.
Q5: Do you supply ATEX rated flow switches for Zone 1?
Yes. Silver Instruments offers ATEX Zone 1 and Zone 2 flow switches for gas and liquid. Send the gas group and temperature class.
