Fuel Consumption Flow Meter Installation for Marine Vessels Tracking Real-Time GPH Burn Rates
Quick Answer: Install an oval gear fuel consumption flow meter on the supply line after the fuel filter and before the engine. This meter type measures direct volume and gives you real time gallons per hour when you add a local display or a 4-20 mA HART loop. For most marine diesel engines below 1000 kW, a DN15 or DN20 meter with an accuracy of 0.5 percent works well.
Why GPH Data Changes Fuel Cost Control
On a workboat or a small cargo vessel, fuel is often the largest operating cost after crew wages. Operators in Southeast Asia and the Middle East ask us to track GPH not because they want a lab reading. They want to see if a generator burns 18 liters per hour at idle or 26 liters per hour at cruise. That difference tells them when to clean injectors, when to replace filters, and when one engine is overloaded.
A flow meter installed on each engine supply line gives the chief engineer a number on a bridge display. The display number updates every second. The display number is not a simulation. The pulse output from an oval gear flow meter counts each small volume of diesel. A local indicator can convert pulses to GPH or L/h.
Pick the Right Flow Meter for Marine Fuel
In practice, diesel fuel viscosity ranges from 2 to 6 cP at 40 °C. Heavy fuel oil after heating can still be above 50 cP. A positive displacement meter handles both cases better than a turbine meter. We recommend our OGM series oval gear flow meters for diesel and light fuel oil up to DN50. The oval gear design gives repeatable readings even when viscosity changes a little during a long voyage.
For larger engines or fuel oil with higher viscosity, a Coriolis mass flow meter is often better. It reads kg/h directly and gives density and temperature as secondary outputs. A customer in Vietnam tested a DN15 CMF series Coriolis meter on a 350 kW auxiliary engine. The meter tracked fuel consumption within 0.2 percent of the bunker soundings over a two week run. That field check helped the owner justify a fleet wide retrofit.
Installation Steps for a Marine Fuel Consumption Meter
First, install the meter on the clean side of the fuel system. The meter should sit after the final filter and before the engine lift pump or high pressure pump. This location protects the meter from free water and large particles. Most marine fuel systems have a return line to the tank. You have two choices. Meter only the supply line and accept a small error from return flow. Or install a second meter on the return line and subtract the two readings. The second method is more accurate, especially on common rail engines with constant return flow.
Second, keep the meter f

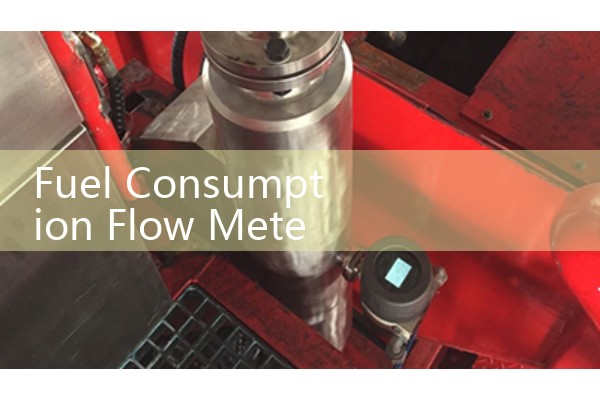

_600x400.jpg)
Third, provide flexible hose connections before and after the meter. Positive displacement meters do not need long straight runs. Coriolis meters also work with short runs. Flexible hoses reduce vibration from the engine.
Output Signals and Remote Monitoring
Most marine panels accept 4-20 mA analog signals. We choose 4-20 mA HART output because it gives the flow rate and the totalizer value over one pair of wires. Some customers send the signal to a PLC or a paperless recorder on the bridge. A PT100 temperature sensor in the meter body helps the flow computer correct volume to a standard temperature. That correction matters when diesel density shifts with temperature.
For hazardous areas, specify an ATEX Zone 1 approval. The electronics housing should be IP65 or IP67. Silver Automation Instruments supplies fuel flow meters with ATEX and 4-20 mA HART. The pulse output can feed a local indicator with a GPH readout, which is what most captains want to see.
Five Questions Vessel Operators Ask
How do I convert L/h to GPH? Divide L/h by 3.785. A 60 L/h burn rate equals 15.85 GPH. Most flow meters from our factory let you choose the engineering unit on the display.
Can the meter handle a return line? Yes, install a matched meter on the return line. Subtract the return volume from the supply volume. Ask us for a dual meter flow computer.
What pipe size do I need for a small generator? For generators under 100 kW, DN10 or DN15 meters cover the typical 5 to 50 L/h flow range. Confirm your engine data sheet before ordering.
Does diesel viscosity affect the reading? Oval gear meters keep accuracy within 0.5 percent for diesel with 2 to 10 cP. For heavy fuel oil above 50 cP, talk to us about a Coriolis meter.
Can I use the meter in an engine room with high vibration? Yes, but use a bracket and flexible hoses. The electronics need a stable mount. We have seen many installations fail because the meter body was supported only by the pipe.
Get a Quote for Marine Fuel Consumption Flow Meters
Send us your fuel type, viscosity in cP, pipe size in DN, minimum and maximum flow rate in GPH or L/h, and operating pressure in bar. We will propose a meter with the right measuring range and connection size. Silver Automation Instruments is a flow meter manufacturer and supplier based in Nanjing, China. Call us at +86-25-68650347. WhatsApp +86-25-52155837. WeChat: +86 15365082610. Visit our website flow-meter.com.au for more product details.
