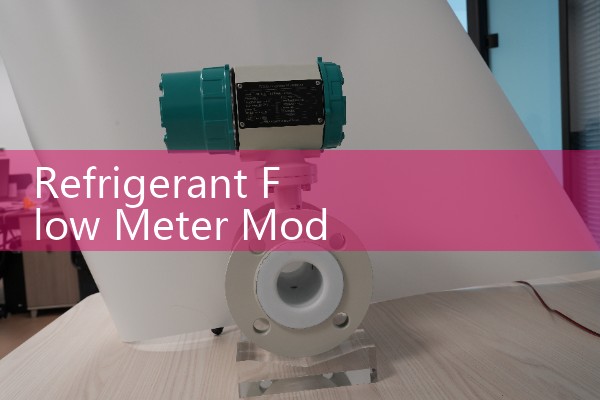

Refrigerant Flow Meter Modbus Output: Linking Multiplexed Chiller Sensors to a Central PLC
Quick Answer: A refrigerant flow meter with Modbus RTU output lets you connect up to 32 chiller flow sensors on a single RS485 bus. This cuts wiring cost and gives your central PLC real-time mass flow, temperature, and density data from multiple evaporators or condensers. Silver Instruments supplies compact Coriolis meters with built-in Modbus for R134a, R410A, R32, and ammonia.
Most chiller plants in Southeast Asia and the Middle East still wire each flow sensor with a separate 4-20 mA loop. That works until you need to monitor 16 parallel chillers and your PLC runs out of analog input cards. We have seen this on customer sites many times.
Why Multichannel Modbus Matters in Chiller Plants
When you use a refrigerant flow meter with RS485 Modbus output, a single shielded twisted pair cable can daisy-chain multiple meters. Each meter gets a unique slave ID from 1 to 247. The central PLC polls each device and reads registers for mass flow rate (kg/h), temperature (°C), density (kg/m³), and totalized mass. In practice, you can monitor up to 20 chillers without adding extra I/O modules. This saves a sugar refinery in Thailand about AUD 700 per chiller on cable and conduit alone.
Silver Instruments Coriolis meters send data in 32-bit IEEE 754 floating point format over Modbus register pairs. So your PLC or SCADA can grab 4 registers holding mass flow and temperature in one read command. For multiplexed chiller banks, this means a clean data structure and no signal converters.
What We See on Customer Sites
Last year, a paint manufacturer in Vietnam needed to retrofit 12 old water-cooled chillers using R134a. Each chiller had a separate evaporator and condenser loop. The plant team wanted to calculate real-time COP from refrigerant mass flow and compressor power. They originally planned to run 24 analog cables back to a Siemens S7-1200 PLC. Instead, our engineers suggested one Coriolis meter per chiller on the refrigerant liquid line, all on a Modbus RS485 chain.
They used the Silver Instruments SCP-012 Coriolis flow meter with DN15 connections. The meter measured 0 to 850 kg/h of R134a at 8 bar and 20 °C liquid temperature. Accuracy was ±0.2% of rate. The Modbus register map gave the PLC mass flow, temperature, and density every 500 ms. Because each meter had a distinct node ID, the PLC simply polled addresses 1 through 12. Installation took two days. The central PLC now logs COP data and triggers alarms if any chiller efficiency drops below 3.2.
Modbus Registers and Data Mapping from Silver Instruments
Here are the default holding registers for a Silver Instruments refrigerant Coriolis meter:
40001-40002: Mass flow rate (float, kg/h)
40003-40004: Temperature (float, °C)
40005-40006: Density (float, kg/m³)
40007-40008: Totalized mass (float, kg)
40009: Slave ID (integer, read only)
40010: Error code (integer, bitwise)
These registers are standard across all meter sizes from DN06
Installation Tips for Refrigerant Flow Meters with RS485
Keep the RS485 A and B lines twisted along the whole cable run. Terminate the bus with a 120 ohm resistor at the last meter only. Most engineers skip this part and then wonder why polling fails after 50 meters. Set baud rate to 9600 or 19200 (default) and match it on the PLC. Silver Instruments meters ship with slave ID 1; change it before connecting to the bus so there is no address conflict.
For refrigerant lines, always install the Coriolis meter in the liquid line after the condenser and before the expansion valve. Avoid two-phase flow because it affects density and mass flow accuracy. If you measure refrigerant gas, place the meter on the suction line and specify a meter rated for low density.
FAQ on Refrigerant Flow Meter Modbus Output
Can I connect a refrigerant flow meter directly to a Siemens S7-1200 PLC via Modbus? Yes. Use the CM1241 RS485 module or the onboard PtP interface with the Modbus RTU library. Read registers 40001-40004 to get mass flow and temperature in one block.
How many meters can I put on one Modbus bus for a central chiller plant? The RS485 electrical standard supports 32 unit loads. In practice we keep it under 25 to avoid noise issues. For large plants with 30 chillers, we recommend two separate Modbus segments.
What happens if the refrigerant is R410A at high pressure? Our standard Coriolis meter is rated for 40 bar at 120 °C. R410A systems typically run at 25-30 bar liquid pressure. The meter works fine. Just confirm the wetted material is stainless steel 316L, certified for that refrigerant.
Does the meter give totalized mass for energy calculation? Yes. The totalized mass register pair accumulates flow continuously. Together with temperature difference from PT100 sensors on the evaporator inlet and outlet, your PLC can calculate chiller thermal power in kW.
What is the delivery time for a refrigerant flow meter with Modbus output to Saudi Arabia? For standard DN15 and DN25 sizes, we ship within 5 working days. Calibration with R134a or R410A is done in our factory. Express delivery via DHL takes 5-7 days to Dammam or Riyadh.
Need a quote or a Modbus register map PDF? Send us your refrigerant type, liquid pressure (bar), temperature range (°C), pipe size (DN), and required flow range (kg/h). Email [email protected] or message us on WhatsApp 86-135-12131526. For quick calls, dial +86-135-1213-1526. We usually reply within 2 hours during business hours (UTC+8). Our WeChat ID is +86 13512131526 for Chinese-speaking clients and on-site support photos.
Silver Automation Instruments supplies the SCP series Coriolis flow meters and electromagnetic meters for chiller plants across Australia, Indonesia, Mexico, UAE, and Nigeria. See our full refrigerant meter range at flow-meter.com.au.
