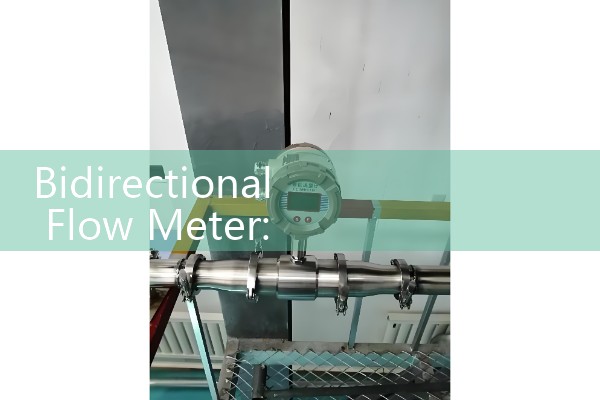

Bidirectional Flow Meter: Monitoring Forward and Reverse Piping Streams
Quick Answer
A bidirectional flow meter measures flow rate and accumulated volume in both forward and reverse directions through a single inline instrument. You get independent totalizers for supply and return streams without installing two separate meters. Silver Instruments supplies electromagnetic and ultrasonic bidirectional meters with 4-20 mA HART and Modbus RTU output, ready for HVAC chilled water, irrigation networks, chemical recovery, and oil transfer lines.
Why a Bidirectional Flow Meter Matters in Practice
In many process loops fluid can travel in either direction depending on pump cycles, valve positions, or seasonal load changes. A standard unidirectional meter ignores reverse flow or counts it as forward, giving wrong totals. A bidirectional meter detects flow direction and accumulates forward and reverse volumes separately. This is not a niche feature. We see demand every week from district cooling plants in Malaysia, textile dyeing houses in Vietnam, and oil terminals in Nigeria. The most common request: one meter to monitor both supply and return lines and cut hardware cost by half.
Where You Will Find Forward and Reverse Flow Monitoring
District cooling and heating networks in the Middle East use bidirectional meters to bill energy based on chilled water supply and return volumes. In Australia, irrigation canals often reverse flow during pump shutdowns, and a bidirectional magnetic flow meter prevents billing disputes. Chemical batch plants in Brazil recover solvents through the same pipe, requiring a meter that logs both loading and recovery liters. Desalination plants in Saudi Arabia monitor brine recirculation loops where flow direction changes during membrane cleaning cycles. Fish farms in Chile measure water exchange in raceways that can flow both ways depending on tide and pump operation. In each case the meter must deliver absolute accuracy in both directions without recalibration.
How Silver Instruments Bidirectional Meters Handle the Job
Our inline electromagnetic flow meters support bidirectional measurement with no moving parts and a straight through bore. Sizes from DN3 to DN1200 cover everything from pilot additive lines to large water mains. The internal processor samples flow signal at high speed and assigns forward and reverse pulse outputs instantly. Minimum conductivity requirement is 5 µS/cm for standard water based fluids. For ultrapure water or hydrocarbons we offer clamp-on ultrasonic flow meters that measure bidirectional flow from outside the pipe for DN50 up to DN6000. Both technologies provide dual isolated pulse outputs or a 4-20 mA HART signal where 12 mA represents zero flow, 4 mA represents full scale reverse flow, and 20 mA represents full scale forward flow. Modbus RTU registers carry forward total, reverse total, and net volume so your SCADA system can pull data directly.
Specifications Engineers Ask Us About
Most project inquiries start with line size, fluid, and pressure class. For electromagnetic bidirectional meters we supply ratings from PN16 to PN40, liner choices PTFE or hard rubber, electrode material 316L, Hastelloy C, or titanium. Process temperature range is -25 °C to 180 °C depending on liner. Accuracy in bidirectional mode is 0.5% of rate for velocities above 0.3 m/s, and we can offer 0.2% for custody transfer applications with matched calibration. The transmitter enclosure is IP67 or IP68, with ATEX Z
Installation Tips That Prevent Headaches
Here is the thing. A bidirectional meter requires the same upstream and downstream straight pipe run regardless of flow direction. Most engineers skip this part and end up with erratic readings when flow reverses into a short elbow. Plan for at least 5D upstream and 3D downstream straight length from any disturbance in both directions. For electromagnetic meters always install grounding rings or use integral ground electrodes if the pipe is non-conductive. In dosing skids we often see air pockets when flow direction changes. Mount the meter in a low point or install an air release valve upstream. Our application team has seen a dairy in New Zealand lose reverse totalization because of foam accumulation during CIP cycles. A simple vertical mounting solved it.
Getting a Quote for Your Bidirectional Flow Meter
To receive a specific price and delivery time, send us your fluid name, pipe size (DN), operating pressure in bar, temperature range in °C, and required signal outputs. If you need ATEX or IECEx certification mention the zone. Tell us the maximum forward and reverse flow rates in m³/h or kg/h. Our team will reply with a suitable model and datasheet within one working day.
Call Silver Instruments at Tel: +86-135-1213-1526. Send a message via WhatsApp: 86-135-12131526 or WeChat: +86 13512131526. You can also ship us your pipe spool for a clamp-on meter trial.
Frequently Asked Questions About Bidirectional Flow Meters
Can a standard electromagnetic flow meter measure reverse flow?
Yes, many modern magmeters offer bidirectional measurement as a standard feature. Silver Instruments LMB series comes with bidirectional firmware that detects flow direction and creates separate forward and reverse totalizers. No extra hardware is needed.
What is the minimum conductivity for a bidirectional magnetic flow meter?
Typically 5 µS/cm. Demineralized water or condensate with lower conductivity may fall below this threshold. In those cases we recommend clamp-on ultrasonic meters that do not require conductive fluid.
Do you provide ATEX certified bidirectional flow meters?
Our LMB-Ex electromagnetic flow meters carry ATEX Zone 1 and IECEx certification for gas and dust. They are available from DN15 to DN300 and maintain full bidirectional measurement and output capability inside hazardous areas.
How do you output forward and reverse totalization separately?
You can use two isolated passive pulse outputs: one for forward volume and one for reverse volume. Through Modbus RTU you read forward total, reverse total, and net flow registers. Over a single 4-20 mA HART loop the meter can send 12 mA at zero flow, with current scaled above and below to indicate direction and rate.
What pipe sizes do you cover for bidirectional flow applications?
Inline electromagnetic meters from Silver Instruments cover DN3 to DN1200. For large pipes or where cutting the pipe is not allowed, clamp-on ultrasonic bidirectional meters work on DN50 up to DN6000. We have a quick sizing guide for your specific pipe schedule.
